So, I had this old joystick just collecting dust in a drawer. You know how it is. Every now and then I’d see it and think, “I should do something with that.” Well, last week, I finally got around to it. I figured, why not try and build some kind of contraption I could control with it? Sounded like a fun little weekend project.
Getting the Bits Together
First thing was figuring out what I actually needed. Obviously, the joystick was key. Then, I rummaged around and found a little microcontroller board – the brain of the operation, basically. I knew I’d need something to actually make things move, so I dug out a couple of small DC motors. These were probably salvaged from an old toy, if I’m honest.
Of course, you can’t just hook motors straight up to the microcontroller. It’d fry the poor thing. So, a motor driver board was essential. And then, something to put it all on. I wasn’t aiming for pretty, just functional. An old plastic container looked like it would do the trick for a chassis. Oh, and a battery pack for power, plus a whole mess of wires. You always need more wires than you think.
- Old joystick (the star!)
- A trusty microcontroller
- Two small DC motors
- One motor driver board
- A plastic box for the body
- Battery pack
- Lots of jumper wires
The Build Process – Or, How I Spent My Saturday
Alright, with all my bits laid out, it was time to get started. The first hurdle, and it’s always a bit of a fiddle, was getting the microcontroller to understand the joystick. I spent a good while just poking around, figuring out which pins on the joystick did what. There was some trial and error, let me tell you. Lots of printing values to my screen to see what was happening.
Once the joystick was talking to the brain, the next step was the motors. Hooking them up to the motor driver wasn’t too bad, but then came the coding part – making the joystick movements translate into motor commands. That took some head-scratching. Forward, backward, left, right… it sounds simple, but getting the logic right so it feels intuitive can be tricky.
I remember the first time I tried to combine them. I pushed the joystick forward, and one wheel spun forward, the other backward! My little contraption just pirouetted on the spot. Classic beginner mistake, or maybe just a Tuesday for me. A quick swap of a couple of wires on one motor, and we were back in business.
Then came the physical assembly. Mounting the motors to the plastic box was a bit crude – lots of hot glue and hope involved. Strapping the microcontroller, motor driver, and battery pack down took a bit of creative cable management. It wasn’t winning any beauty contests, that’s for sure.
Testing and Tweaking – The Fun Part!
With everything wired up and sort of bolted down, it was time for the first real test. I put it on the floor, took a deep breath, and pushed the joystick. It moved! Okay, it kind of lurched forward and then veered sharply to the left, but it moved!
The controls were super sensitive at first. The slightest touch on the joystick would send it careening off. So, back to the code I went. I had to add some dead zones for the joystick, so small accidental movements wouldn’t register. Then I played around with mapping the joystick values to motor speeds to get a smoother response. It took a fair bit of uploading new code, testing, tweaking, rinse and repeat.
I also had to fine-tune the turning. Getting it to turn reasonably well with two independent motors involves playing with the speed differences between them. It’s not perfect, it still turns a bit like a tank, but it’s manageable.
The Result? A Glorious, Wobbly Contraption!

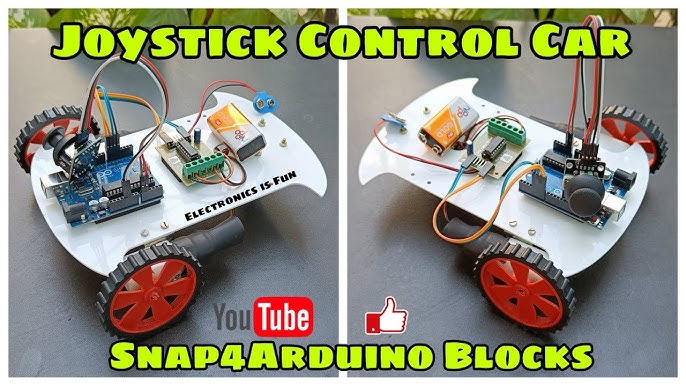

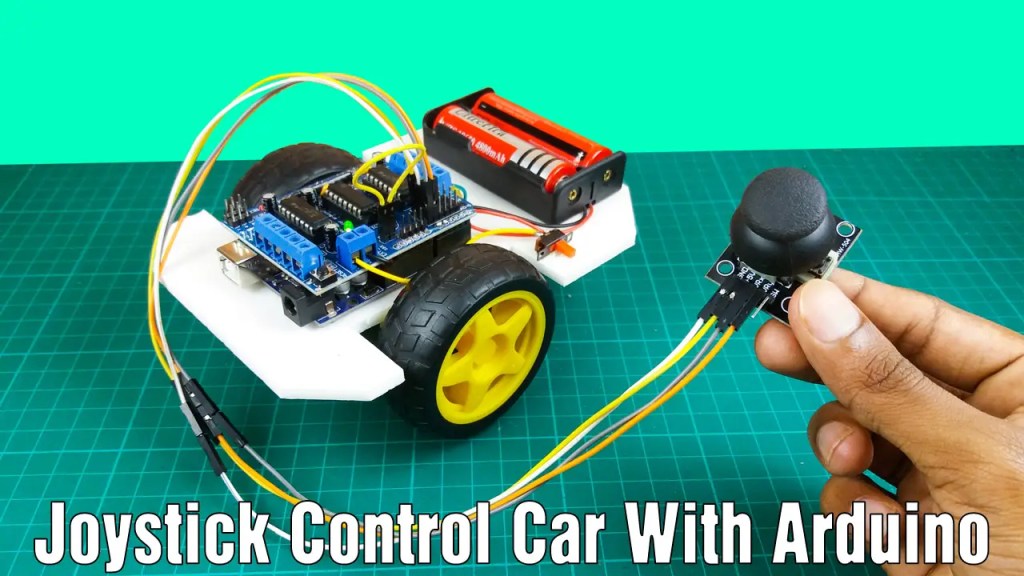

So, after a good day’s work, I had it. My very own joystick-controlled contraption. It’s a bit wobbly, makes a funny whirring sound, and the wiring is a bit of a bird’s nest if you look too closely. But you know what? It works! I can drive this little thing around the living room floor with that old joystick, and it’s surprisingly fun.
It’s not going to change the world, but it was a great way to spend some time, use up some old parts, and actually make something. And there’s a certain satisfaction in seeing something you’ve cobbled together actually come to life. Now I’m already thinking about what I can add to it next… maybe some lights?
